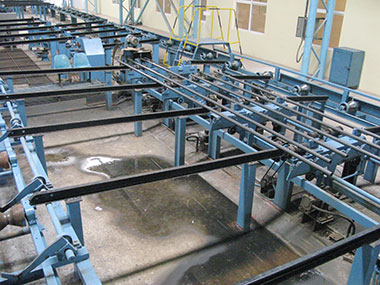

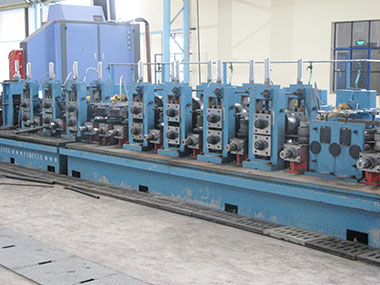

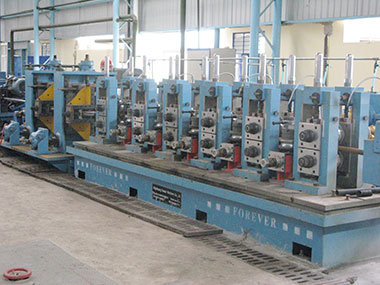

165 Tube mill Line Raw material (Steel Strip) in form of a coil is uncoiled and fed into forming section passing through the equipment of entry section. Entry section enables the tube mill to run continuously by using strip joining and accumulation equipment. Tube is formed in round shape passing through a set of driven and idler rollers of forming section before welding. In welding section tube is longitudinally welded by using high frequency induction welding method. Outside bead is removed and formed in shape of scrap. The weld seam is ironed and tube passes through the cooling section. In sizing section, tube is formed to specified size and converted into specified shape. After sizing, tube is cut to specified length by using flying cutting equipment and delivered in collecting troughs passing through run out conveyor. Technological Flow： Steel strip → Coil car  → Uncoiling →Coil peeler → Pinch & Leveling →Shearing and butt welding → Accumulator → Forming → Welding → Bead remover →Water cooling →Sizing → Turks head  → Flying saw cutting →End facing & chamfering → Pipe collecting. PRODUCT RANGE:

Material to be processed	Carbon Steel, strip coils of weld able grade with max. 0.2% carbon
Type	Round, Square & Rectangular pipe
Pipe O. Diameter
Round Tube	76.2mm – 165.1mm
Square Tube	60 x 60 – 130 x 130mm
Rectangular Tube	40 x 80 – 120 x 140mm
Wall thickness	2.0 mm – 6.0 mm
Pipe length	6.0 m – 12.0 m
Line Speed	Max. 60 m/min
Welding Method	Solid State High Frequency Welding 500kW
Forming Method	Bottom line of tube constant for all sizes
