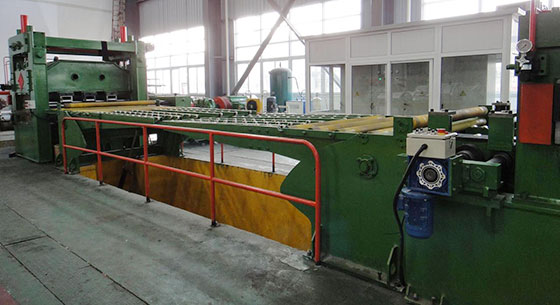

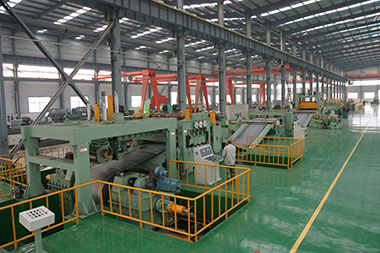

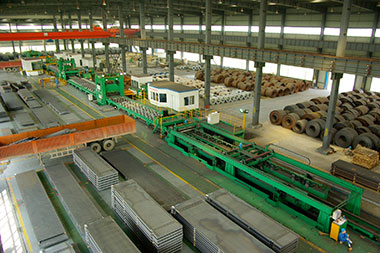

HEAVY CUT TO LENGTH LINE
Heavy cut to length line is used to cut hot-rolled steel coil, stainless steel coil, aluminum coil, cut into various specifications of the size, this line also can have trimming function, make the width size meet customer requirements.
This line is composed of entry coil car, uncoiler, material-feeding device, simple leveler, transfer bridge, trimming shearer(optional), leveler, setting length device, plate feeder, cutting device, transfer table, thrower stacking device, Hydraulic system and electric control system.
This production line has high degree of automation, high shearing precision, stable and reliable performance, easy operation and maintenance, etc
| SPECIFICATIONS: |
|
|
|
|
|
| Model No. |
Thickness
mm |
coil width
mm |
Cut Precision
mm |
Cutting times
pcs/Min |
Weight
Ton |
Stacking length
mm |
| CTL 6×2000 |
1.0-6.0 |
500-2000 |
±0.8 |
10 |
25 |
500-6000 |
| CTL 8×2000 |
2.0-8.0 |
500-2000 |
±2.5 |
3 |
30 |
500-8000 |
| CTL 10×2000 |
2.0-10.0 |
500-2000 |
±2.5 |
3 |
30 |
500-10000 |
| CTL 12×2000 |
3.0-12.0 |
500-2000 |
±2.5 |
3 |
30 |
500-12000 |
| CTL 16×2200 |
4.0-16.0 |
500-2200 |
±2.5 |
3 |
35 |
500-15000 |
| CTL 20×2200 |
4.0-22 |
500-2200 |
±2.5 |
3 |
35 |
500-15000 |
