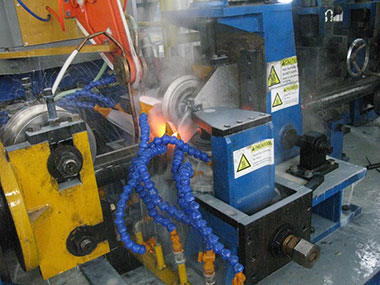

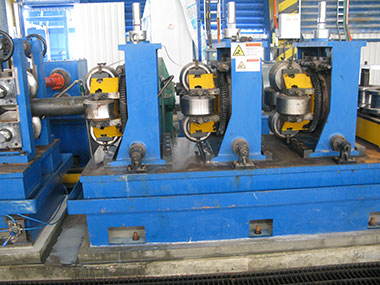

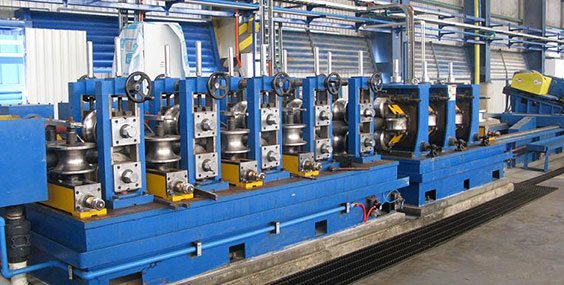

Φ89 Tube mill Line High‐frequency welded tube mill line is designed to produce round tube diameter of Φ25.4 –Φ88.9 mm, and wall thickness of 0.8 ‐4.0 mm. This line utilizes roll forming to process steel strip into various shapes. Using high frequency induction heating, this line is capable of producing section material of various diameters and sizes by squeezing weld seam together into closed shape. The application of advanced aperture technology, PLC automatic control system and British Eurasia Digital speed‐regulating unit ensure that the production line works reliably and operates and maintains easily. Coil loading—Uncoiling‐Strip joining—accumulator—Forming,‐H.F. Welding–Bead Remover ‐Cooling—Sizing & straightening‐Measuring roll—Flying saw cutting—Run out conveyor

Specification
Raw material	Carbon Steel, Cold or Hot Rolled pre slit strip coils of weld able grade with max. 0.2% carbon.
Round tube O.D.	min 25.4mm, max.88.9mm
Wall thickness of Round	min.0.8mm, max.4.0mm
Square tube	min 20x20mm, max70x70 mm
Rectangle tube	min 20x30mm, max40x100 mm
Wall thickness sq & rec.	min.0.8mm, max.3.5mm
H.F. welder	Solid state,300 kW
Line Speed	Max 80 m/min
Tube length	5 – 12 m
Tube length accuracy	±2mm per 6m length
