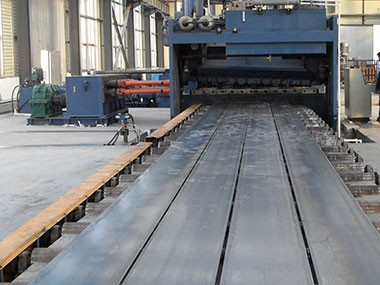

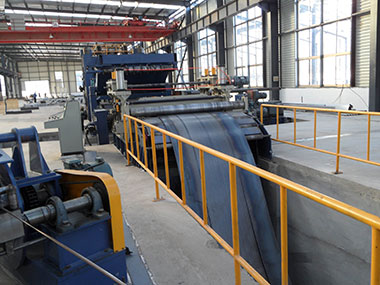

Slitting Line and Cut to length Line The Slitter Line The Slitter Line is used to slit the thin steel strip in coil into several narrow strips of certain size. The slit strips are then rewound into coils, for which welded pipes, cold-formed sections and presswork are manufactured. The lines are composed of high-precision slitters with quick tooling change for slitter, tensioning device and recoiler. High-capacity recoilless . Extraction from coils without banding. Scrap baller or scrap choppers. Moving tensioning devices with incorporated leveling. Coil car→ Uncoiler → Coil peeler and leveler→ Crop shear → Passing bridge→ Guide unit→ Slitting machine→ Scrap baller→  Pit accumulator→ Pre-separator→ Tension unit, overarm separator→  Re-coiler→ Coil discharging car→ (Turnstile). The hydraulic Unit and PLC Control. THE DATE OF SLITTING LINE

	JZ600	JZ11300	JZ1600	JZ1600	JZ1600	JZ2000	JZ2200
WIDTH	50-300	80-600	300-1200	600-1550	600-1650	600-1950	600-2000
THICKNESS	0.6-3.0	0.6-2.0	0.8-4.0	1.0-6.0	1.5-8.0	2.0-12.7	3.0-16
TYPE	Pull Cut	Pull Cut	Pull Cut	Initiative+ Pull Cut	Initiative+ Pull Cut	Initiative+ Pull Cut	Initiative+ Pull Cut
SPEED(m/min)	120	100	100	80	60	50	40
